Wooding core bits Size table

The actual sizes are in metric, and imperial sizes are approximate.
Cutter size D Max. drilling depth: 130mm (5-1/8")
Complete sets Cutters
  mm inch Part No.
(Straight shank sets)		 Part No.
(SDS shank sets)		 Part No.
  22mm 7/8" PCWS22 PCWS22R PCWS22C
25mm 1" PCWS25 PCWS25R PCWS25C
29mm 1-1/8" PCWS29 PCWS29R PCWS29C
32mm 1-1/4" PCWS32 PCWS32R PCWS32C
35mm 1-3/8" PCWS35 PCWS35R PCWS35C
38mm 1-1/2" PCWS38 PCWS38R PCWS38C
45mm 1-3/4" PCWS45 PCWS45R PCWS45C
50mm 2" PCWS50 PCWS50R PCWS50C
55mm 2-1/8" PCWS55 PCWS55R PCWS55C
60mm 2-3/8" PCWS60 PCWS60R PCWS60C
65mm 2-9/16" PCWS65 PCWS65R PCWS65C
70mm 2-3/4" PCWS70 PCWS70R PCWS70C
75mm 2-7/8" PCWS75 PCWS75R PCWS75C
80mm 3-1/8" PCWS80 PCWS80R PCWS80C
  85mm 3-3/8" PCWS85 PCWS85R PCWS85C
90mm 3-1/2" PCWS90 PCWS90R PCWS90C
95mm 3-3/4" PCWS95 PCWS95R PCWS95C
100mm 3-7/8" PCWS100 PCWS100R PCWS100C
105mm 4-1/8" PCWS105 PCWS105R PCWS105C
110mm 4-1/4" PCWS110 PCWS110R PCWS110C
  115mm 4-1/2" PCWS115 PCWS115R PCWS115C
120mm 4-3/4" PCWS120 PCWS120R PCWS120C
  125mm 4-15/16" PCWS125 PCWS125R PCWS125C
  130mm 5-1/8" PCWS130 PCWS130R PCWS130C
  140mm 5-1/2" PCWS140 PCWS140R PCWS140C
150mm 5-7/8" PCWS150 PCWS150R PCWS150C
  155mm 6" PCWS155 PCWS155R PCWS155C
160mm 6-5/16" PCWS160 PCWS160R PCWS160C
  165mm 6-1/2" PCWS165 PCWS165R PCWS165C
  170mm 6-11/16" PCWS170 PCWS170R PCWS170C
  180mm 7" PCWS180 PCWS180R PCWS180C
  200mm 7-7/8" PCWS200 PCWS200R PCWS200C
  210mm 8-1/4" PCWS210 PCWS210R PCWS210C
  220mm 8-11/16" PCWS220 PCWS220R PCWS220C

The actual sizes are in metric, and imperial sizes are approximate.
Max. drilling depth: 80mm (3-1/8")
Cutters
Cutter size D Part No.
  mm inch
32mm 1-1/4" PCWS3280C
35mm 1-3/8" PCWS3580C
38mm 1-1/2" PCWS3880C
45mm 1-3/4" PCWS4580C
50mm 2" PCWS5080C
  53mm 2-1/16" PCWS5380C
60mm 2-3/8" PCWS6080C
65mm 2-9/16" PCWS6580C
70mm 2-3/4" PCWS7080C
  75mm 2-7/8" PCWS7580C
80mm 3-1/8" PCWS8080C
95mm 3-3/4" PCWS9580C
100mm 3-7/8" PCWS10080C
110mm 4-1/4" PCWS11080C
120mm 4-3/4" PCWS12080C
  160mm 6-5/16" PCWS16080C

Shanks
Click here for the size table of the Poly-Clic shanks.

Center Drills

Item Part No. Applications
Center drill PCWSCD225 Cutters of o22mm to 220mm (o7/8" to 8-11/16")
Center drill 80L PCWSCD175 Cutters of o32mm to 160mm (o1-1/4" to 6-5/16")　
* For max. drilling depth: 80mm (3-1/8")
Acute Center　Drill PCBHCD225 Wood, metal siding, ceramic siding
* Use a carbide-tipped center drill (PCHWCD225 or PCHWCD175) when making a hole in ceramic siding boards.

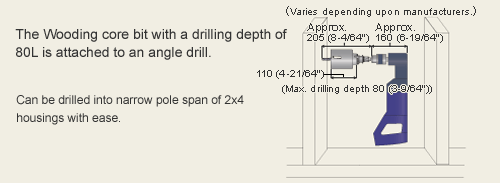

The Wooding core bit with a drilling depth of 80L is atached to an angle drill.
