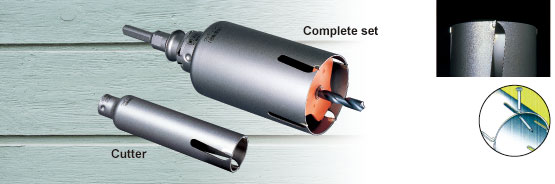

For various types of wall materials such as metallic siding boards, ceramic siding boards, wood, etc.
Our original design of the cutting teeth permits safe and fast drilling through nail embedded wood.

CHARACTERISTICS

  • Specially designed for safe and fast drilling through nail embedded wood.

APPLICATIONS

  • Metallic siding boards, ceramic siding boards, woods, plaster boards, veneer, laminated wood, slate, floor panel, polyvinyl chloride, artificial marble, FRP.

SPECIFICATIONS

Cutter size: o22mm to 220mm (o7/8" to 8-11/16")

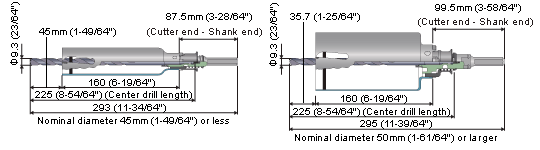

Max. drilling depth: Standard size: 130mm (5-1/8") (Cutter length: 160mm (6-5/16"))
o22mm to 220mm (o7/8" to 8-11/16")
    Short size: 80mm (3-1/8") (Cutter length: 110mm (4-1/4"))
o32mm to 160mm (o1-1/4" to 6-5/16")
Shank size: Click here for the size table of the Poly-Clic shanks.
Applicable electric drill: Portable electric drills (in the rotary-only mode)

  • Use a carbide-tipped center drill (PCHWCD225 or PCHWCD175) when making a hole in ceramic siding boards.
  • Use the Hyperdia core bits for drilling in hard ceramic siding boards.
  • This core bits can make a hole in the metallic part of metallic siding boards of up to approx. 0.5mm (1/64") thickness. However, this tool is not suitable for drilling in a flat surface (without small bumps and dips) of the metallic part.
