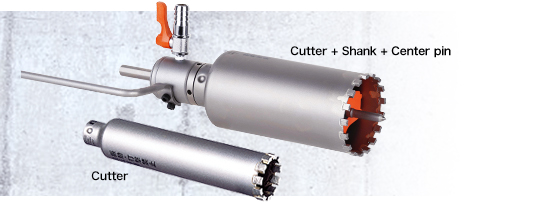

Ideal for drilling in difficult-to-machine materials, such as reinforced concrete and Hume pipes.
![](img/img_no16_01.jpg)
![CHARACTERISTICS](img/tit_no2_02.gif)
- Cutters can be changed with a single action without any tools.
- Excellent cutting performance has realized cutting of reinforcing bars even in the rotary-only mode.
- The internal water supply system provides more efficient cooling of the cutting teeth and removal of dust.
![APPLICATIONS](img/tit_no2_03.gif)
- Piping work for air conditioners, water-, gas-, and electrical systems, etc.
- Reinforced concrete, prestressed concrete, asphalt, etc.
- Ceramic tiles, marbles, stone, Hume pipes, and ceramic pipes.
![SPECIFICATIONS](img/tit_no2_04.gif)
![](../../img/mark_nakaguro.gif) |
Cutter size: |
o25mm to 220mm (o1" to 8-11/16") |
![](../../img/mark_nakaguro.gif) |
Max. drilling depth: : |
Standard size: 150mm (5-7/8") (Cutter length: 180mm (7"))
Long size: 220mm (8-11/16") (Cutter length: 250mm (9-7/8")) |
![](../../img/mark_nakaguro.gif) |
Shank size: |
Click here for the size table of the Wetmond shanks. |
![](../../img/mark_nakaguro.gif) |
Applicable electric drill: Double insulated electric drills (in the rotary-only mode) |
![](img/img_no16_02.gif)
![](../img/mark_cation.gif)
- Always supply water when making a hole.
- When water is used, make sure to take measures to prevent electric shock. We recommend wearing rubber gloves.
