Diamond-tipped cutter permits drilling in ceramic tiles and rigid tiles.

  • The carbide center pin ensures accurate hole starting without bit walking or shifting.
  • Easy to operate with the automatic locking and manual release mechanism.
    (S-LOCK system)

APPLICATIONS

  • Ceramic tiles, various types of tiles (Always use this tool for wet drilling.)

SPECIFICATIONS

Cutter size: o22mm to 65mm (o7/8" to 2-9/16")
Max. drilling depth: 38mm (1-1/2")
Shank size: Straight shank 10mm (3/8"), SDS shank
Applicable electric drill: Portable double insulated electric drills
(in the rotary mode)

The actual sizes are in metric, and imperial sizes are approximate.

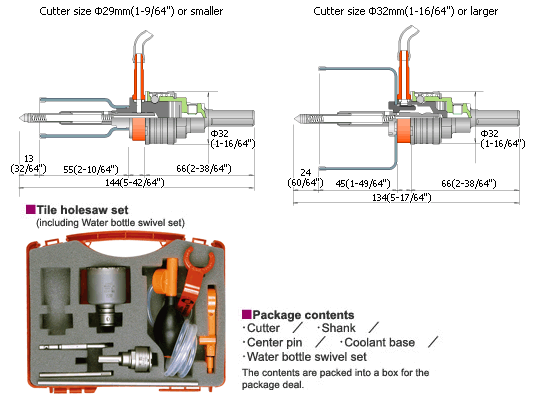

Cutter size D Complete set (with water bottle swivel set) Cutters
mm inch Part No.
(Straight shank sets)		 Part No.
(SDS shank sets)		 Part No.
22mm 7/8" SLT022PB SLT022RPB SLT022
25mm 1" SLT025PB SLT025RPB SLT025
29mm 1-1/8" SLT029PB SLT029RPB SLT029
32mm 1-1/4" SLT032PB SLT032RPB SLT032
35mm 1-3/8" SLT035PB SLT035RPB SLT035
38mm 1-1/2" SLT038PB SLT038RPB SLT038
40mm 1-9/16" SLT040PB SLT040RPB SLT040
45mm 1-3/4" SLT045PB SLT045RPB SLT045
50mm 2" SLT050PB SLT050RPB SLT050
65mm 2-9/16" SLT065PB SLT065RPB SLT065
* Click here for information about the shanks and center drills.

Item Part No.
Water bottle swivel set PBSSH
Coolant base SLCB
