Excellent cutting performance for work materials such as steel plates, stainless steel plates, and metal pipes.
- The carbide-tipped teeth permit drilling in work materials such as stainless steel.
- The cutting depth can be set in consideration of safety.
- Easy to operate with the automatic locking and manual release mechanism.
(S-LOCK system)
- Steel, stainless steel of up to 4mm (5/32") thickness.
- Metal pipe, etc.
- FRP, resin plates, etc.
 |

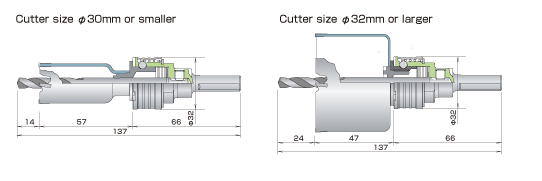

Cutter size: |
o14mm to 65mm (o35/64" to 2-9/16") |
|
Body length: |
35mm (1-3/8")
(This holesaw can make a hole in flat plates of up to 4mm (5/32") thickness.) |
|
Shank size: |
Straight shank 10mm (3/8"), SDS shank,
Hex shank for cordless drill 6.35mm (1/4")
(For cutter size of 35mm (1-3/8") or less) |
|
Applicable electric drill: |
Portable electric drills (in the rotary-only mode) |
|
The actual sizes are in metric, and imperial sizes are approximate.
|
| Cutter size D |
Cutters |
| mm |
inch |
Part No. |
| 14mm |
35/64" |
SL578P014 |
| 15mm |
19/32" |
SL578P015 |
| 16mm |
5/8" |
SL578P016 |
| 18mm |
45/64" |
SL578P018 |
| 19mm |
3/4" |
SL578P019 |
| 20mm |
25/32" |
SL578P020 |
| 21mm |
13/16" |
SL578P021 |
| 22mm |
7/8" |
SL578P022 |
| 23mm |
29/32" |
SL578P023 |
| 24mm |
15/16" |
SL578P024 |
| 25mm |
1" |
SL578P025 |
| 26mm |
1-1/64" |
SL578P026 |
| 27mm |
1-1/16" |
SL578P027 |
| 28mm |
1-3/32" |
SL578P028 |
| 29mm |
1-1/8" |
SL578P029 |
| 30mm |
1-3/16" |
SL578P030 |
| 32mm |
1-1/4" |
SL578P032 |
| 33mm |
1-9/32" |
SL578P033 |
| 34mm |
1-5/16" |
SL578P034 |
| 35mm |
1-3/8" |
SL578P035 |
| 38mm |
1-1/2" |
SL578P038 |
| 40mm |
1-9/16" |
SL578P040 |
| 42mm |
1-5/8" |
SL578P042 |
| 45mm |
1-3/4" |
SL578P045 |
| 50mm |
2" |
SL578P050 |
| 53mm |
2-1/16" |
SL578P053 |
| 65mm |
2-9/16" |
SL578P065 |
|
| * |
Click here for information about the shanks and center drills. |
|
