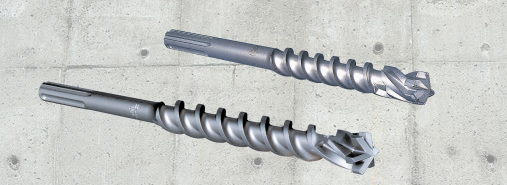

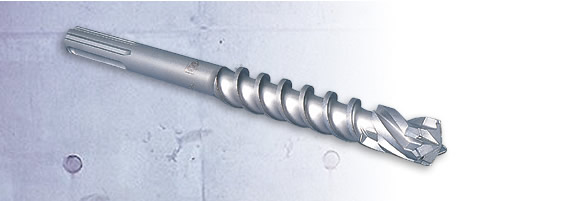

Announcing the release of large diameter drill bit!!
Improved safety and drilling speed!!
- Drills near-perfect round holes
- Improved centering performance
- Easy work due to low impact drilling
- Improved drilling speed
- Safer drilling against re-bar
- Penetrates through deck-plate
- Minimum wear of outside diameter
- For drilling in concrete, block, brick, rock, deck-plate and concrete
- For use with rotary hammer drill with SDS-max
 |
Bit diameter: | o10.0mm to 32.0mm |
|
Overall length: | See size table. |
|
Max. drilling depth: | |
|
Applicable electric drill: | Rotary hammer drill with SDS-max |
The bit diameter is based on MIYANAGA standard.
| Bit diameter (mm) |
Part No. | Overall length L (mm) |
Max. drilling depth l (mm) |
Cutting edges |
| *Coming soon | ||||
| *10.0 | DLMAX100 | 305 | 165 | 3 |
| *10.5 | DLMAX105 | |||
| *11.0 | DLMAX110 | |||
| *12.0 | DLMAX120 | |||
| *12.5 | DLMAX125 | |||
| *12.7 | DLMAX127 | |||
| *13.0 | DLMAX130 | |||
| *13.5 | DLMAX135 | |||
| *14.0 | DLMAX140 | |||
| *14.3 | DLMAX143 | |||
| 14.5 | DLMAX145 | |||
| 15.0 | DLMAX150 | |||
| 16.0 | DLMAX160 | |||
| *16.5 | DLMAX165 | |||
| *17.0 | DLMAX170 | |||
| *17.5 | DLMAX17534 | 340 | 200 | |
| 18.0 | DLMAX18034 | |||
| *18.5 | DLMAX18534 | |||
| 19.0 | DLMAX19034 | |||
| 20.0 | DLMAX20034 | |||
| 21.5 | DLMAX21534 | 5 | ||
| 22.0 | DLMAX22034 | |||
| 23.0 | DLMAX23034 | |||
| *16.0 | DLMAX16039 | 390 | 250 | 3 |
| 24.0 | DLMAX24038 | 380 | 260 | 5 |
| 25.0 | DLMAX25038 | |||
| 26.0 | DLMAX26038 | |||
| *18.0 | DLMAX18044 | 440 | 300 | 3 |
| *19.0 | DLMAX19044 | |||
| *20.0 | DLMAX20044 | |||
| 28.0 | DLMAX28042 | 420 | 300 | 6 |
| 30.0 | DLMAX30042 | |||
| 32.0 | DLMAX32042 | |||
| Bit diameter (mm) |
Part No. | Overall length L (mm) |
Max. drilling depth l (mm) |
Cutting edges |
| *Coming soon | ||||
| *10.0 | DLMAX10054 | 540 | 400 | 3 |
| *10.5 | DLMAX10554 | |||
| *11.0 | DLMAX11054 | |||
| *12.0 | DLMAX12054 | |||
| *12.5 | DLMAX12554 | |||
| *12.7 | DLMAX12754 | |||
| *13.0 | DLMAX13054 | |||
| *13.5 | DLMAX13554 | |||
| *14.0 | DLMAX14054 | |||
| *14.3 | DLMAX14354 | |||
| 14.5 | DLMAX14554 | |||
| 16.0 | DLMAX16054 | |||
| *16.5 | DLMAX16554 | |||
| *17.0 | DLMAX17054 | |||
| *17.5 | DLMAX17554 | |||
| 18.0 | DLMAX18054 | |||
| 19.0 | DLMAX19054 | |||
| 20.0 | DLMAX20054 | |||
| 21.5 | DLMAX21554 | 5 | ||
| 22.0 | DLMAX22054 | |||
| 23.0 | DLMAX23054 | |||
| 24.0 | DLMAX24052 | 520 | ||
| 25.0 | DLMAX25052 | |||
| 26.0 | DLMAX26052 | |||
| 28.0 | DLMAX28057 | 570 | 450 | 6 |
| 30.0 | DLMAX30057 | |||
| 32.0 | DLMAX32057 | |||
 |
The bit diameter is based on PGM approval. |
| Bit diameter (mm) |
Part No. | Overall length L (mm) |
Max. drilling depth l (mm) |
Cutting edges |
| 10.0 | DLMAX10034E | 340 | 200 | 3 |
| 12.0 | DLMAX12034E | |||
| 13.0 | DLMAX13034E | |||
| 14.0 | DLMAX14034E | |||
| 15.0 | DLMAX15034E | |||
| 16.0 | DLMAX16034E | |||
| 18.0 | DLMAX18034E | |||
| 19.0 | DLMAX19034E | |||
| 20.0 | DLMAX20034E | |||
| 22.0 | DLMAX22034E | 5 | ||
| 23.0 | DLMAX23034E | |||
| 24.0 | DLMAX24032E | 320 | ||
| 25.0 | DLMAX25032E | |||
| 26.0 | DLMAX26032E | |||
| 30.0 | DLMAX30042E | 420 | 300 | 6 |
| 32.0 | DLMAX32042E | |||
| 10.0 | DLMAX10054E | 540 | 400 | 3 |
| 12.0 | DLMAX12054E | |||
| 13.0 | DLMAX13054E | |||
| 14.0 | DLMAX14054E | |||
| 15.0 | DLMAX15054E | |||
| 16.0 | DLMAX16054E | |||
| 18.0 | DLMAX18054E | |||
| 19.0 | DLMAX19054E | |||
| 20.0 | DLMAX20054E | |||
| 22.0 | DLMAX22054E | 5 | ||
| 23.0 | DLMAX23054E | |||
| 24.0 | DLMAX24052E | 520 | ||
| 25.0 | DLMAX25052E | |||
| 26.0 | DLMAX26052E | |||
| 30.0 | DLMAX30057E | 570 | 450 | 6 |
| 32.0 | DLMAX32057E |
|
