The actual sizes are in metric, and imperial sizes are approximate.
|
| Cutter size D |
Complete sets |
Cutters |
| |
mm |
inch |
Part No. (Straight shank sets) |
Part No. |
| |
25mm |
1" |
PCWD25 |
PCWD25C |
| |
29mm |
1-1/8" |
PCWD29 |
PCWD29C |
 |
32mm |
1-1/4" |
PCWD32 |
PCWD32C |
| |
35mm |
1-3/8" |
PCWD35 |
PCWD35C |
| |
38mm |
1-1/2" |
PCWD38 |
PCWD38C |
| |
45mm |
1-3/4" |
PCWD45 |
PCWD45C |
 |
50mm |
2" |
PCWD50 |
PCWD50C |
| |
55mm |
2-1/8" |
PCWD55 |
PCWD55C |
| |
60mm |
2-3/8" |
PCWD60 |
PCWD60C |
|
65mm |
2-9/16" |
PCWD65 |
PCWD65C |
| |
70mm |
2-3/4" |
PCWD70 |
PCWD70C |
| |
75mm |
2-7/8" |
PCWD75 |
PCWD75C |
| |
80mm |
3-1/8" |
PCWD80 |
PCWD80C |
| |
90mm |
3-1/2" |
PCWD90 |
PCWD90C |
| |
100mm |
3-7/8" |
PCWD100 |
PCWD100C |
| |
110mm |
4-1/4" |
PCWD110 |
PCWD110C |
| |
120mm |
4-3/4" |
PCWD120 |
PCWD120C |
| |
150mm |
5-7/8" |
PCWD150 |
PCWD150C |
|
170mm |
6-11/16" |
PCWD170 |
PCWD170C |
| |
220mm |
8-11/16" |
PCWD220 |
PCWD220C |
|
| * |
The SDS shank set is not available. Order a cutter, SDS shank, and center pin separately. |
The actual sizes are in metric, and imperial sizes are approximate.
|
| Cutter size D |
Complete sets |
Cutters |
| mm |
inch |
Part No. (Straight shank sets) |
Part No. |
| 50mm |
2" |
PCWD5022 |
PCWD5022C |
| 65mm |
2-9/16" |
PCWD6522 |
PCWD6522C |
| 75mm |
2-7/8" |
PCWD7522 |
PCWD7522C |
| 80mm |
3-1/8" |
PCWD8022 |
PCWD8022C |
|
| * |
The SDS shank set is not available. Order a cutter, SDS shank, and center pin separately. |
| Item |
Part No. |
Applications |
| S shanks for Wetmond |
PCSKWDS |
Cutters of ø 45mm (1-3/4")
or less |
| S shanks for Wetmond SDS |
PCSKWDSR |
| S shanks for Wetmond 300 |
PCSKWDS30 |
| S shanks for Wetmond 300 SDS |
PCSKWDSR30 |
| L shanks for Wetmond |
PCSKWDL |
Cutters of ø 50mm (2")
or larger |
| L shanks for Wetmond SDS |
PCSKWDLR |
| L shanks for Wetmond 300 |
PCSKWDL30 |
| L shanks for Wetmond 300 SDS |
PCSKWDLR30 |
|
| * |
The Poly-clic Wetmond shanks are specially designed for our Wetmond core bits. Do not attach a Wetmond shank to other Poly-clic products. |
| Item |
Part No. |
Applications |
| Center pin |
PCWDCP |
Cutters of ø25mm to 220mm (ø1" to 8-11/16") |
| Center pin 250 |
PCWDCP250 |
Cutters of ø50mm to 80mm (ø2" to 3-1/8")(For long size) |
|

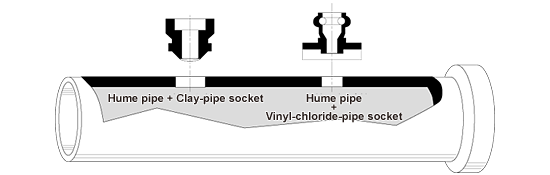

| Nominal diameter of clay-pipe socket |
Cutter size of hume pipe core bits |
| 100mm (3-7/8") |
150mm (5-7/8") |
| 150mm (5-7/8") |
200mm (7-7/8") |
|
| Nominal diameter of vinyl-chloride-pipe socket |
Cutter size of hume pipe core bits |
| 100mm (3-7/8") |
120mm (4-3/4") |
| 150mm (5-7/8") |
170mm (6-11/16") |
| 200mm (7-7/8") |
220mm (8-11/16") |
|
|
