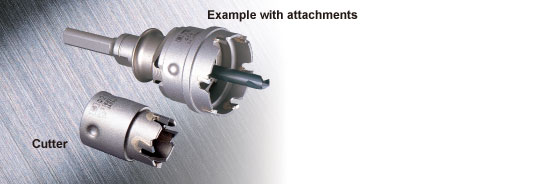

Dramatically improved drilling efficiency and cost effectiveness thanks to the Poly-Clic system.

CHARACTERISTICS

  • The carbide-tipped teeth have realized drilling in work materials such as stainless steel.
  • Easily bores a hole in work materials of up to 4mm (5/32") in thickness.
  • By attaching this tool to an electric drill with high rotational speed, much faster drilling is possible compared to high speed steel cutters.
    1. The cutting depth can be set in consideration of safety.
    2. A safety stopper with this tool stops the cutter from moving forward even after penetration.

APPLICATIONS

  • Mild steel plates, stainless steel plates, copper plates, etc. and curved surfaces.
  • Work materials such as FRP and resin plates.

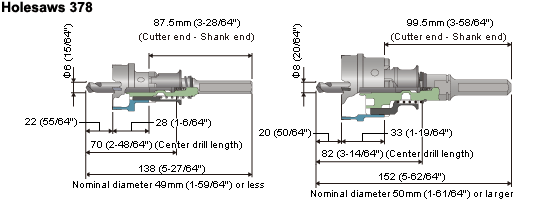

SPECIFICATIONS

Cutter size: ø14mm to 120mm (ø35/64" to 4-3/4")
Max. drilling depth: 4mm (5/32")
Tip width: 2.5mm (3/32")
(Cutters of ø14mm to 16mm (ø35/64" to 5/8"))
2.2mm (3/32")
(Cutters of ø17mm to 35mm (ø21/32" to 1-3/8"))
2.0mm (5/64")
(Cutters of ø 36mm (1-13/32") or larger)
Shank size: Click here for the size table of the Poly-Clic shanks.
Applicable electric drill: Portable electric drills (in the rotary-only mode)

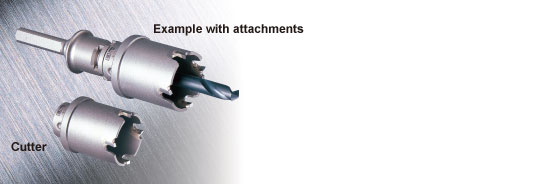

Long body length suitable for drilling pipes and curved surfaces.

CHARACTERISTICS

  • The carbide-tipped teeth have realized drilling in work materials such as stainless steel.
  • A sufficient body length permits drilling curved surfaces.

APPLICATIONS

  • Curved surfaces such as steel pipes, stainless steel pipes, and copper pipes.
  • Plates such as steel plates and stainless steel plates of up to 4mm (5/32") thickness.

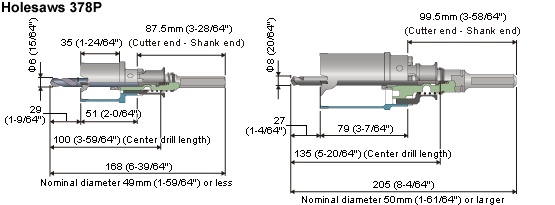

SPECIFICATIONS

Cutter size: ø15mm to 65mm (ø19/32" to 2-9/16")
Max. drilling depth: 4mm (5/32")
Body length: 30mm (1-3/16")
(Cutters of ø15mm to 49mm (ø19/32" to 1-59/64"))
58mm (2-1/4")
(Cutters of ø50mm to 65mm (ø2" to 2-9/16"))
Tip width: 2.5mm (3/32")
(Cutters of ø14mm to 16mm (ø35/64" to 5/8"))
2.2mm (3/32")
(Cutters of ø17mm to 35mm (ø21/32" to 1-3/8"))
2.0mm (5/64")
(Cutters of ø 36mm (1-13/32") or larger)
Shank size: Click here for the size table of the Poly-Clic shanks.
Applicable electric drill: Portable electric drills (in the rotary-only mode)
