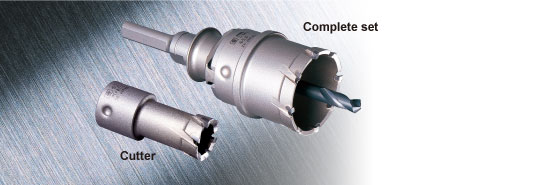

Specially designed cutting teeth realize efficient removal of dust.

• The carbide-tipped teeth allow drilling in work materials such as stainless steel.
• Our original design of the cutting teeth permits smooth removal of dust from the hole.
• Deep bore of body allows even pipes or curved surfaces to be drilled.

• For making a hole in steel plates, stainless steel plates, cast iron plates, etc. of up to 30mm (1-3/16") thickness. ( We recommend the use of a drill press before cutting steel plates, stainless steel plates, cast iron plates, etc. of 12mm (15/32") or larger in thickness and also before making a hole with a cutter which has a diameter of 36mm (1-13/32") or larger. )
• A cutter capable of drilling curved surfaces such as metal pipes, due to deep bore of its body.
• Composite materials of up to 30mm (1-3/16") thickness.

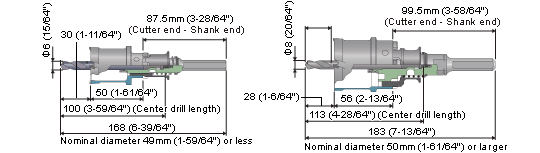

	Cutter size:	ø14mm to 120mm (ø35/64" to 4-3/4")
	Max. drilling depth:	30mm (1-3/16")
	Shank size:	S shanks:	10mm (3/8") (Cutters of ø14mm to 49mm (ø35/64" to 1-59/64"))
		L shanks:	13mm (33/64") (Cutters of ø50mm to 120mm (ø2" to 4-3/4"))
			10mm (3/8") (ø50mm to 80mm (ø2" to 3-1/8")) ..... Optional
	Applicable electric drill: Portable electric drills (in the rotary-only mode) or various drill presses
