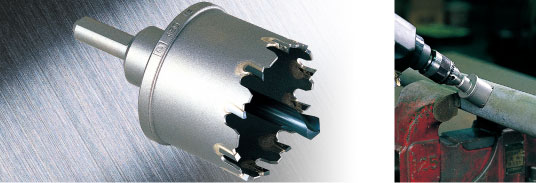

Long body length suitable for drilling pipes and curved surfaces.

CHARACTERISTICS

  • Long body length suitable for the work materials with curved surfaces - such as stainless steel pipes, steel pipes, and copper pipes.

APPLICATIONS

  • Long body length suitable for drilling pipes and curved surfaces.
  • Steel plates, stainless steel plates, copper plates, and aluminum plates of up to 4mm (5/32") thickness.
  • Used in combination with a cobalt HSS center drill.

SPECIFICATIONS

Cutter size: ø16mm to 120mm (ø5/8" to 4-3/4")
Overall length: 86mm to 136mm (3-25/64" to 5-23/64")
Body length: 35mm to 85mm (1-3/8" to 3-3/8")
Cutters of ø16mm to 55mm
(ø5/8" to 2-1/8") --- 35mm (1-3/8")
Cutters of ø60mm to 100mm
(ø2-3/8" to 3-7/8") --- 60mm (2-3/8")
Cutters of ø105mm to 120mm
(ø4-1/8" to 4-3/4") --- 85mm (3-3/8")
Center drill: Cobalt HSS drill
Shank size: Cutters of ø16mm to 22mm
(ø5/8" to 7/8") --- 6.5mm (1/4")
Cutters of ø23mm to 55mm
(ø29/32" to 2-1/8") --- 10mm (3/8")
Cutters of ø60mm to 120mm
(ø2-3/8" to 4-3/4") --- 13mm (33/64")
Applicable electric drill: Portable electric drills (in the rotary-only mode)

  • This holesaw can make a hole in flat plates of up to 4mm (5/32") thickness.
  • Tightly fasten the workpiece for drilling.
