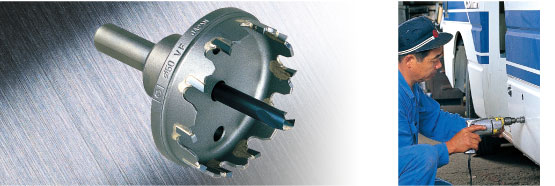

Excellent cutting ability for use in steel plates, stainless steel plates, and synthetic resin plates.

CHARACTERISTICS

  • Easy drilling in work materials of up to 4mm (5/32") thickness.
  • By attaching this tool to an electric drill with high rotational speed, much faster drilling is possible compared to high speed steel cutters.

APPLICATIONS

  • Steel plates, stainless steel plates, copper plates, aluminum plates, etc. of up to 4mm (5/32") thickness in combination with a "C" type (cobalt HSS) center drill.
  • FRP, resin plates, etc., of up to 4mm (5/32") thickness in combination with a "T" type (carbide tipped) center drill.

SPECIFICATIONS

Cutter size : ø14mm to 120mm (ø35/64" to 4-3/4")
Max. drilling depth: 4mm (5/32")
Center drill: Cobalt HSS center drill, Carbide-tipped center drill
Cutters of ø14mm to 59mm (ø35/64" to 2-21/64") --- C-6 or T-6 (ø5.9mm x 48mm L (ø15/64" x 1-7/8" L))
Cutters of ø60mm to 120mm (ø2-3/8" to 4-3/4") --- C-8 or T-8 (ø7.9mm x 48mm L (ø5/16" x 1-7/8" L))
Shank size: Cutters of ø14mm to 22mm (ø35/64" to 7/8") --- 6.5mm (1/4")
Cutters of ø23mm to 59mm (ø29/32" to 2-21/64") --- 10mm (3/8")
Cutters of ø60mm to 120mm (ø2-3/8" to 4-3/4") --- 13mm (33/64")
Applicable electric drill: Portable electric drills (in the rotary-only mode)
