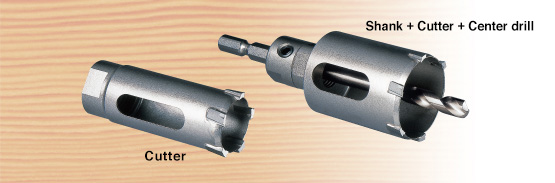

Efficient drilling with cordless impact driver and electric drill.

CHARACTERISTICS

  • Efficient drilling with cordless impact driver (up to ø38mm).
  • Unique double edged tooth design improves the initial drilling efficiency and makes it easy to remove the cutting chip.
  • Stuck-free drilling thanks to eliminating the chip clearance pocket.
  • Easy slug removal using the side slot.
  • Replacement cutter is available.

APPLICATIONS

  • Wood, plywood, resin materials, vinyl chrolide pipes and FRP
  • Please make sure to use the driver drill or electric drill for drilling in a metal plate (up to
    1.6 mm in thickness).(Not available to use with the cordless impact driver for drilling in metal)

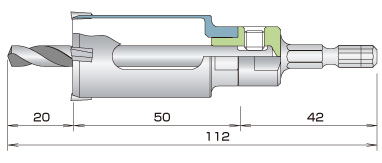

SPECIFICATIONS

Cutter size : ø20mm to 65mm (ø25/32" to 2-9/16")
Max. drilling depth: 40mm (1-9/16")
Shank size: 6.35mm (1/4") Hex shank (DIN3126, ISO1173 Style E6.3)
Straight shank (10mm)
SDS-plus shank
* Use 40mm and above cutters with Straight shank or SDS-plus shank.

Caution

  • Use cordless impact driver (with the battery of 12V or more in voltage)
  • Please make sure to use the driver drill or electric drill for drilling in a metal plate (up to 1.6mm in thickness).
  • Not available to use with the cordless impact driver for drilling in metal
  • To remove slug inside the core bit, eject the slug to direction of cutting edge, incerting slotted screwdriver to the side hole of the cutter.
  • For replacement of cutter, detach the cutter with help from 2 spannar wrenchs of 16mm.
