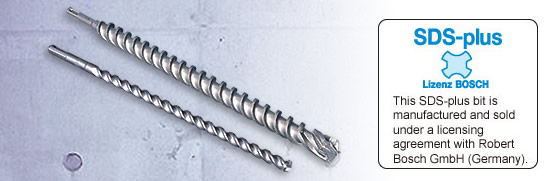

Deltagon bits SDS-plus(Long size)

Improved safety and drilling speed.

Deltagon bits SDS-plus(Long size)

CHARACTERISTICS

  • Higher cutting performance for reinforcing bars.
  • Drilling holes close to a perfect roundness.
  • Full solid carbide head.
  • Limited circumferential wear.
  • The least amount of vibration when drilling minimizes workers' fatigue.
  • Drilling through deck plates.
  • More accurate hole starting without bit walk.

APPLICATIONS

  • Concrete, block, brick, stone, rock, concrete-placed deck plate, etc.

SPECIFICATIONS

Bit diameter: ø4.5mm to 28mm
Overall length: See size table.
Max. drilling depth:
Applicable electric drill: Light-weight hammer drills

Size table

The bit diameter is based on MIYANAGA standard.

Deltagon SDS-plus Bit
Bit diameter
(mm)
Part No. Overall length L
(mm)
Max. drilling depth l
(mm)
Cutting edges
4.5 DLSDS04521 216 150 3
5.0 DLSDS05021
5.3 DLSDS05321
5.5 DLSDS05521
6.0 DLSDS06021
6.4 DLSDS06421
7.0 DLSDS07021
8.0 DLSDS08021
8.5 DLSDS08521
9.0 DLSDS09021
10.0 DLSDS10021
10.5 DLSDS10521
12.0 DLSDS12021
12.5 DLSDS12521
12.7 DLSDS12721
14.0 DLSDS14021
14.5 DLSDS14521
15.0 DLSDS15021
16.0 DLSDS16021
17.0 DLSDS17021
18.0 DLSDS18021
19.0 DLSDS19021
20.0 DLSDS20021
21.5 DLSDS21522 220 150 5
14.5 DLSDS14526 266 200 3
16.0 DLSDS16026
18.0 DLSDS18026
19.0 DLSDS19026
20.0 DLSDS20026
22.0 DLSDS22027 270 5
23.0 DLSDS23027
24.0 DLSDS24027
25.0 DLSDS25027
26.0 DLSDS26027
6.0 DLSDS06031 316 250 3
8.0 DLSDS08031
8.5 DLSDS08531
10.0 DLSDS10031
10.5 DLSDS10531
11.0 DLSDS11031
12.0 DLSDS12031
12.5 DLSDS12531
12.7 DLSDS12731
13.0 DLSDS13031
14.0 DLSDS14031
14.3 DLSDS14331
14.5 DLSDS14531
15.0 DLSDS15031
16.0 DLSDS16031
16.5 DLSDS16531
17.0 DLSDS17031
17.5 DLSDS17531
18.0 DLSDS18031
19.0 DLSDS19031
20.0 DLSDS20031
22.0 DLSDS22032 320 5
23.0 DLSDS23032
24.0 DLSDS24032
25.0 DLSDS25032
26.0 DLSDS26032
  28.0 DLSDS28032 6
10.0 DLSDS10046 466 400 3
10.5 DLSDS10546
12.0 DLSDS12046
12.5 DLSDS12546
12.7 DLSDS12746
13.5 DLSDS13546
14.5 DLSDS14546
16.0 DLSDS16046
18.0 DLSDS18046
19.0 DLSDS19046
20.0 DLSDS20046
22.0 DLSDS22047 470 5
23.0 DLSDS23047
24.0 DLSDS24047
25.0 DLSDS25047
26.0 DLSDS26047
  28.0 DLSDS28047 6
10.0 DLSDS10061 616 550 3
12.0 DLSDS12061
12.5 DLSDS12561
14.5 DLSDS14561
10.0 DLSDS10010 1000 100 3
10.5 DLSDS10510
12.0 DLSDS12010 200
12.5 DLSDS12510
12.7 DLSDS12710
10.0 DLSDS10015 1500 100 3
10.5 DLSDS10515
12.0 DLSDS12015 200
12.5 DLSDS12515
12.7 DLSDS12715
