Drilling in a wide variety of work materials. Boring a hole through a composite wall containing heat insulating materials - with one thrust.

• The diamond grains at the cutting teeth provide smooth drilling.
• Small chance of bit binding ensures safe work.
• Drilling in a wide variety of work materials.
• Cutting lightweight steel beams for ceiling is absolutely easy.

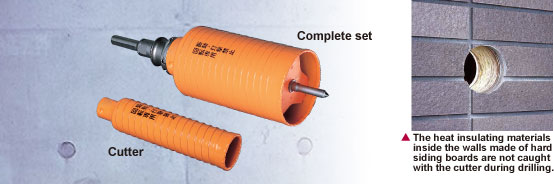

• The heat insulating materials are not entangled with the cutter during drilling.

• Composite walls that contain heat insulating materials.
• Piping work for air conditioners, water system, and electrical systems.
• Mortar, block, brick, ALC, Japanese walls, plaster and lath walls, ceramic/metallic siding boards, etc.
• Smooth drilling in PVC rib pipes, FRPM pipes, etc. without bit binding.

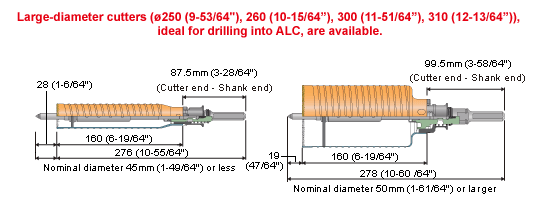

	Cutter size:	ø25mm to 310mm (ø1" to 12-13/64")
	Max. drilling depth:	130mm (5-1/8") (Cutter length: 160mm (6-5/16"))
	Shank size:	S shanks:	10mm (3/8") (ø25mm to 45mm (ø1" to 1-3/4"))
		L shanks:	13mm (33/64") (ø50mm to 310mm (ø2" to 12-13/64"))
			10mm (3/8") (ø50mm to 80mm (ø2" to 3-1/8")) ..... Optional
	Applicable electric drill: Portable electric drills (in the rotary-only mode)

• Use "Drimond core bits for block" for drilling in heavy block and block walls (infilled with mortar and containing reinforcing bars of up to ø 10mm (3/8")).
• The dedicated core bits exhibit superior performance for drilling in the particular work materials.
• Click here for the optimum rotation rate of electric drills and recommended electric drills.
