Prevention of dust scattering!
Usable with other manufacturers' products!
Easy centering!

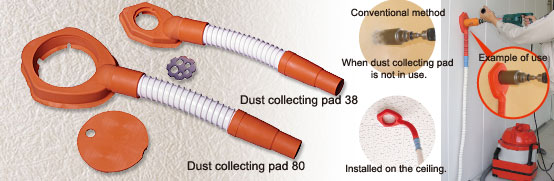

- Combined structure of flexible dust collecting hose and pad, and excellent adsorption makes it possible to be attached to the wall and ceiling.
- Easy centering with scale.
- Usable both for dry and wet type. (Vacuum Cleaner must be wet type / Dust Extractor)
- Can be used with any size of core bits and drill bits.
- Also used with the Mistdia Drill Bit and Wetmond core bits.
- The Plate for dust collecting pad 38 can be used as a positioning guide as well.
- Prevention of dust scattering in drilling work for installation of air conditioners, extractor fans, piping, anchors, etc.
- Usable for a variety of drill bit such as core bits, drill bits, diamond core drills, Mistdia Drill Bit, IT drill bits, etc. Usable for core bits and drill bits supplied by other manufacturers.
 |
| Item |
Part No. |
Components |
Drill diameter |
| Dust collecting pad 38 |
SJP038 |
Dust collecting pad 38
(with plate for dust collecting pad 38)
|
38mm (1-1/2")
or less
|
| Dust collecting pad 80 |
SJP080 |
Dust collecting pad 80
(with plate for dust collecting pad 80)
|
80mm (3-1/8")
or less
|
| Dust collecting pad 125 |
SJP125 |
Dust collecting pad 125
(with plate for dust collecting pad 125)
|
125mm (4-15/16")
or less
|
| Dust collecting pad V |
SJPV |
Dust collecting pad V
(with plate for dust collecting pad V)
|
165mm (6-1/2")
or less
|
| Dust collecting pad L |
SJPL |
Dust collecting pad L
(with plate for dust collecting pad L)
|
220mm
(8-11/16") or less
|
|
 |
| Item |
Part No. |
Components |
Drill diameter |
| Plate for dust collecting pad 38 |
SJP038P |
Metal plate
(with positioning holes)
|
5.5, 7, 9,
11, 13mm
|
| Plate for dust collecting pad 38A |
SJP038PA |
Metal plate
(with positioning holes)
|
5.5, 7, 15,
16.5, 18.5mm
|
| Plate for dust collecting pad 80 |
SJP080P |
Resin palte |
80mm (3-1/8")
or less
|
| Plate for dust collecting pad 125 |
SJP125P |
Risin plate |
125mm (4-15/16")
or less
|
| Plate for dust collecting pad V |
SJPVA |
Rubber plate |
165mm (6-1/2")
or less
|
| Plate for dust collecting pad L |
SJPLA |
Rubber plate |
220mm (8-11/16")
or less
|

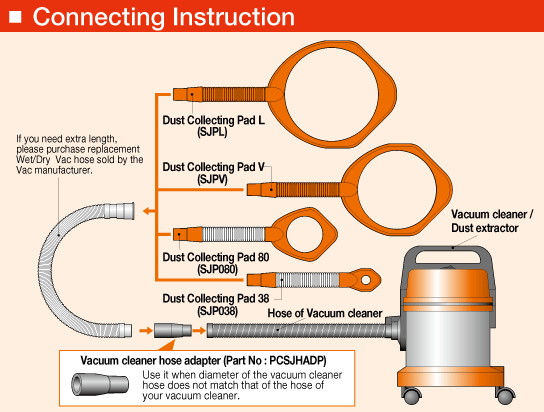

| Hose adaptor |
PCSJHADP |
Usable for the hose Diameter
from 30mm to 38mm
(1-3/16" to 1-1/2")
|
- |
|
- This pad may not be attached to the ceiling depending on the height of the ceiling, suction force of the dust collector, or condition of the ceiling surface.
- Dust may stick to the Dust collecting pad and cannot be removed if the pad is used for drilling in Japanese-style plastered walls, or walls covered with textile wallpaper of a deep color or of uneven surface.
|
