The actual sizes are in metric, and imperial sizes are approximate.
The bit size (diameter) is based on MIYANAGA standard.
Bit size D Part No. Overall length L Max. drilling depth l
mm inch
12.5mm 1/2" BV12520 200mm (7-7/8") 150mm (5-7/8")
14.5mm 9/16" BV14520
16.0mm 5/8" BV16020
18.0mm 45/64" BV18020
18.0mm 45/64" BV18026 260mm (10-1/4") 210mm (8-1/8")
19.0mm 3/4" BV19020 200mm (7-7/8") 150mm (5-7/8")
19.0mm 3/4" BV19026 260mm (10-1/4") 210mm (8-1/8")
20.0mm 25/32" BV20020 200mm (7-7/8") 150mm (5-7/8")
20.0mm 25/32" BV20026 260mm (10-1/4") 210mm (8-1/8")
21.0mm 13/16" BV21026
22.0mm 7/8" BV22026
22.5mm   BV22526
23.0mm 29/32" BV23026
24.0mm 15/16" BV24026
25.0mm 1" BV25026
28.0mm 1-3/32" BV28031 310mm (12-13/64") 260mm (10-1/4")
30.0mm 1-3/16" BV30031
32.0mm 1-1/4" BV32036 360mm (14-3/16") 310mm (12-13/64")

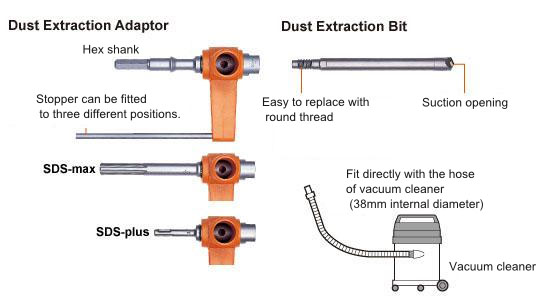

* The dust extraction adaptor is necessary for the use of the dust extraction bits.


Item Part No.
HEX BVHEX
SDS-plus BVSDS
SDS-max BVMAX
